Truss

Lattice work

A truss is a structure comprising one or more triangular units to act either for tensile and compressive forces.
The weight of the members is often insignificant compared to the applied loads and so is often omitted.
Wingspans until 8m are possible.
Thanks to the careful thought that went into their design, they can be produced with several profile variations. They can either be used as static elements or as part of an architectonic concept.

Traverse Cut, length: Axis +25 mm

132100 Traverse-Cut • 275 - 4.025 mm • 525 mm: 731 g • 1.025 mm: 1.301 g • 2.525 mm: 3.011 g	132105 Traverse-Cut • 275 - 4.025 mm • 525 mm: 652 g • 1.025 mm: 1.147 g • 2.525 mm: 2.633 g
132110 Traverse-Cut • 275 - 4.025 mm • 525 mm: 571 g • 1.025 mm: 990 g • 2.525 mm: 2.245 g	132115 Traverse-Cut • 275 - 4.025 mm • 525 mm: 573 g • 1.025 mm: 992 g • 2.525 mm: 2.252 g

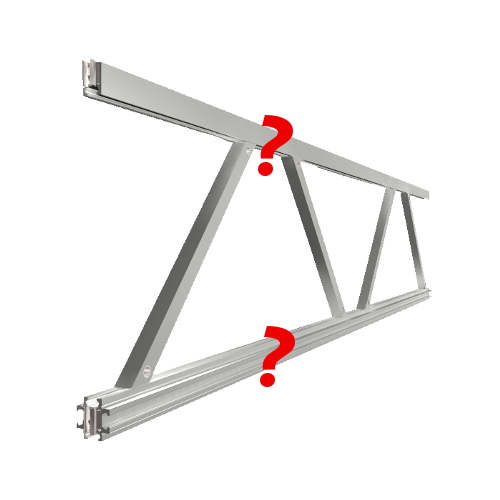

132125 Traverse-Cut • 275 - 4.025 mm • 525 mm: 479 g • 1.025 mm: 810 g • 2.525 mm: 1.803 g	132??? Traverse-Cut • 275 - 4.025 mm • Choose top and bottom profile • Choose orientation of profiles

Traverse support, length: axis +25 mm

137100 Traverse-Support • 275 - 4.025 mm • 525 mm: 787 g • 1.025 mm: 1.357 g • 2.525 mm: 3.067 g	137105 Traverse-Support • 275 - 4.025 mm • 525 mm: 708 g • 1.025 mm: 1.203 g • 2.525 mm: 2.689 g
137110 Traverse-Support • 275 - 4.025 mm • 525 mm: 627 g • 1.025 mm: 1.046 g • 2.525 mm: 2.301 g	137115 Traverse-Support • 275 - 4.025 mm • 525 mm: 629 g • 1.025 mm: 1.048 g • 2.525 mm: 2.308 g
137125 Traverse-Support • 275 - 4.025 mm • 525 mm: 535 g • 1.025 mm: 866 g • 2.525 mm: 1.859 g	137??? Traverse-Support • 275 - 4.025 mm • Choose top and bottom profile • Choose orientation of profiles

Traverse Support-Groove, length: axis ±0 mm

138100 Traverse-Support-Groove • 250 - 4.000 mm • 500 mm: 709 g • 1.000 mm: 1.279 g • 2.500 mm: 2.989 g	138105 Traverse-Support-Groove • 250 - 4.000 mm • 500 mm: 634 g • 1.000 mm: 1.129 g • 2.500 mm: 2.615 g
138110 Traverse-Support-Groove • 250 - 4.000 mm • 500 mm: 557 g • 1.000 mm: 975 g • 2.500 mm: 2.230 g	138115 Traverse-Support-Groove • 250 - 4.000 mm • 500 mm: 558 g • 1.000 mm: 978 g • 2.500 mm: 2.237 g
138125 Traverse-Support-Groove • 250 - 4.000 mm • 500 mm: 469 g • 1.000 mm: 800 g • 2.500 mm: 1.793 g	138??? Traverse-Support-Groove • 250 - 4.000 mm • Choose top and bottom profile • Choose orientation of profiles and locks

Traverse Half-Groove, length: axis ±0 mm

139100 Traverse-Half-Groove • 250 - 4.000 mm • 500 mm: 653 g • 1.000 mm: 1.223 g • 2.500 mm: 2.933 g	139105 Traverse-Half-Groove • 250 - 4.000 mm • 500 mm: 578 g • 1.000 mm: 1.073 g • 2.500 mm: 2.559 g
139110 Traverse-Half-Groove • 250 - 4.000 mm • 500 mm: 501 g • 1.000 mm: 919 g • 2.500 mm: 2.147 g	139115 Traverse-Half-Groove • 250 - 4.000 mm • 500 mm: 502 g • 1.000 mm: 922 g • 2.500 mm: 2.181 g
139125 Traverse-Half-Groove • 250 - 4.000 mm • 500 mm: 413 g • 1.000 mm: 744 g • 2.500 mm: 1.737 g	139??? Traverse-Half-Groove • 250 - 4.000 mm • Choose top and bottom profile • Choose orientation of profiles and locks

Traverse, Length: Axis -25 mm

140100 Traverse • 225 - 3.975 mm • 475 mm: 575 g • 975 mm: 1.145 g • 1.475 mm: 1.715 g	140105 Traverse • 225 - 3.975 mm • 475 mm: 504 g • 975 mm: 1.000 g • 1.475 mm: 1.495 g
140110 Traverse • 225 - 3.975 mm • 475 mm: 431 g • 975 mm: 850 g • 1.475 mm: 1.267 g	140115 Traverse • 225 - 3.975 mm • 475 mm: 432 g • 975 mm: 852 g • 1.475 mm: 1.271 g
140125 Traverse • 225 - 3.975 mm • 475 mm: 348 g • 975 mm: 678 g • 1.475 mm: 1.010 g	140??? Traverse • 225 - 3.975 mm • Choose top and bottom profile • Choose orientation of profiles and locks
